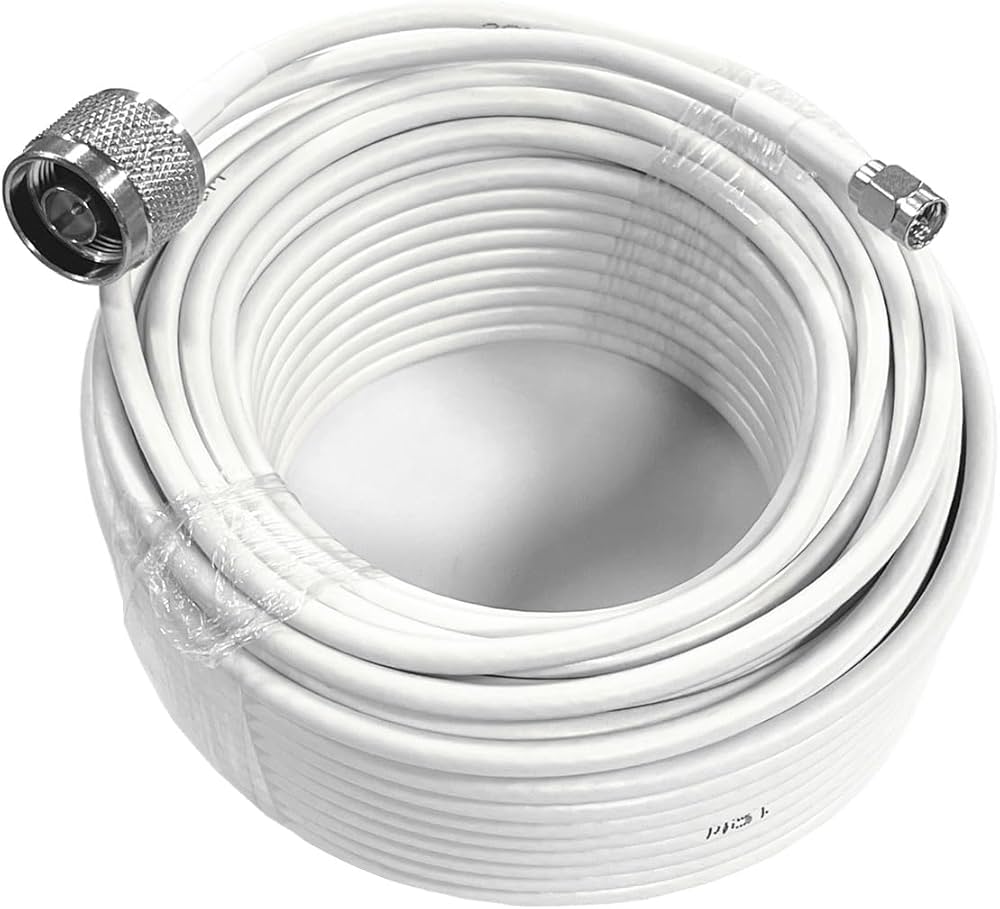

3D-FB 50Ω RF Coaxial Cable White (sold by the meter)

Price 1,49 €

3D-FB 50Ω RF Coaxial Cable White (sold by the meter)

3D-FB 50Ω RF Coaxial Cable White (sold by the meter)

3D-FB 50Ω RF Coaxial Cable White (sold by the meter)

1,49 €
Availability
In stock
Delivery time days

3D-FB is a reliable 50 ohm RF coaxial cable for a wide range of RF and antenna applications. This version is white and sold by the meter: it is cut to your required length from a 300 m reel.

The cable features a bare copper / copper-clad steel inner conductor, a foam/solid PE dielectric, and shielding with bonded aluminium foil plus a tinned copper braid to help reduce interference. No connectors are included, allowing you to choose the right RF connectors for your installation.

  • Sold as: cut length (by the meter, from a 300 m reel)
  • Color: white
  • Connectors: not included
  • Use: 50Ω RF links, antenna and radio systems

Attenuation (dB/100 m) (selected values):

Frequency (MHz)Attenuation (dB/100 m)
10010.4
40021.0
80030.0
120037.0
200048.2
250054.1
  • Product code: 3D-FB
  • Impedance: 50 ± 3 Ohm
  • Jacket material: PVC/PE
  • Overall diameter (jacket): 5.4 mm
  • Inner conductor: bare copper / copper clad steel, Ø 1.07 mm
  • Dielectric: foam/solid PE, Ø 3.0 ± 0.02 mm
  • Shield: bonded aluminium foil, Ø 3.2 mm
  • Outer conductor: tinned copper braid, Ø 3.6 mm
  • Shield coverage: 85%
  • Nominal capacitance: 82 pF/m
  • Velocity of propagation: 81%
  • Insulation resistance: > 5000 Mohm·Km
  • Inner conductor resistance: 19.2 (65.2) Ohm/Km
  • Outer conductor resistance: 16.3 Ohm/Km
  • Operating temperature: -40 °C to +85 °C
  • Minimum bending radius: 27 mm
  • Attenuation (dB/100 m): 100 MHz 10.4; 150 MHz 13.0; 280 MHz 17.5; 350 MHz 19.5; 400 MHz 21.0; 800 MHz 30.0; 900 MHz 31.6; 1200 MHz 37.0; 1500 MHz 41.5; 1800 MHz 45.6; 1900 MHz 46.9; 2000 MHz 48.2; 2200 MHz 50.6; 2500 MHz 54.1
